Portwell Releases New Qseven 2.1 Module with x86 Based Processor

Published: Jan 11,2017

430 Read

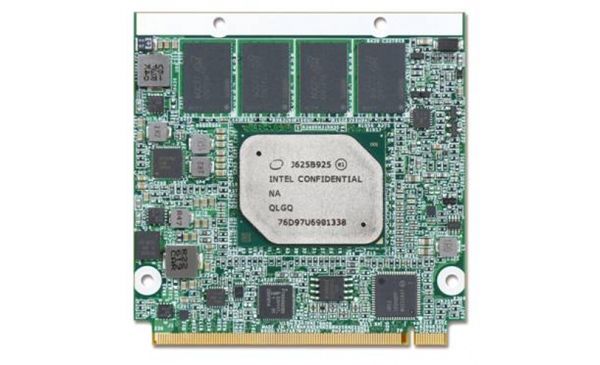

Portwell announced its newest Qseven 2.1 module with x86 based processor. The model series named as PQ7-M108 (70x70mm), is based on the latest Intel 14nm Atom, Celeron and Pentium processors (codenamed Apollo Lake).

More on This

Portwell Launches an Advanced SFF Embedded System Board with Intel Celeron Processor J3455

Portwell, Inc., a innovator for Industrial PC (IPC) and embedded computing solutions, and an associate member of the Intel Internet of Things (IoT) Solutions Alliance...

Portwell Releases a Palm-sized Fan-less Embedded System Utilizing the Latest Intel Apollo Lake SoC

Portwell announces the release of the WEBS-7000, a palm-sized fan-less embedded system featuring the latest 14nm Intel P...

The new Intel Atom E3900 series embedded SoC integrates the Intel Gen 9 graphics with triple display support in high resolution, as well as four vector image processing units, and Intel’s Time Coordinated Computing (TCC) Technology, which is said to coordinate and synchronize peripherals and networks of connected devices to within a microsecond.

Other than graphic performance, the new PQ7-M108 Qseven 2.1 modules are designed with the latest mobile series memory LPDDR4 at 2400MT/s speed which enhances field application in, for example, smart building control and Human Machine Interface (HMI) device.

The PQ7-M108 is also embedded with Infineon’s OPTIGA TRUST IC which is designed to protect embedded systems from unauthorized accessories, replacement parts or disposables. With the unique Infineon data authentication feature, end devices that are built with the Portwell PQ7-M108 module are capable of offering protection against unauthorized re-use or re-provisioning of original parts.

The Qseven 2.1 based PQ7-M108 supports its five available Intel Apollo Lake processors with up to 8GB of LPDDR4 (2400MT/s) RAM and eMMC5.0 up to 64GB on board. In addition to supporting Linux and Microsoft Windows 10 like the other modules, the PQ7-M108 also supports Android, Microsoft Windows IoT Core, and VxWorks 7 on request.

The multimedia features on PQ7-M108 include dual-channel LVDS (up to 1920 x 1200 @60Hz), which can be swapped out for eDP, and two other DDI option to either DisplayPort 1.2 (up to 4096 x 2160 pixels) or HDMI 1.4b (up to 3840 x 2160).

The PQ7-M108 is further equipped with 3 x USB 3.0or 4x USB 2.0, 1x SDIO 3.0, 2x SATA 3, and up to 4x PCIe Gen2 lanes. Also onboard are 1x I2C, 1x UART, HDA co-lay with I2S, 2x SPI, and a JTAG for debugging function. The module includes Portwell’s Board Controller and ACPI 5.0 power management, and can handle industrial -40 to 85°C temperatures.
