Printers, office automation equipment, surveillance cameras, banking terminals such as ATMs, banknote identification machines, amusement machines, and home appliances are being downsized to save space and improve design. Low power consumption is also growing in importance as a means to scale down IC boards and reduce internal heat in products.

The new IC integrates Toshiba’s ACDS architecture, adopted previously in a unipolar stepping motor driver IC. It eliminates the need for two external resistors usually required to detect motor current.

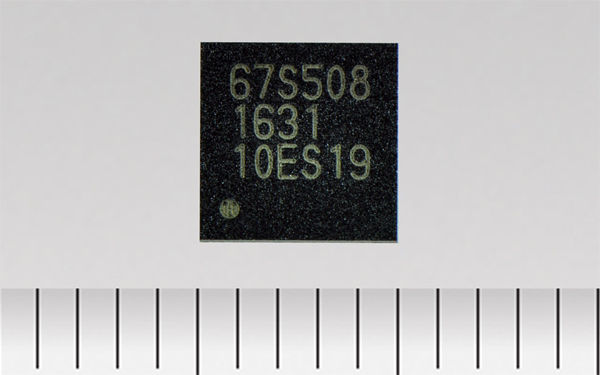

By adopting a small QFN36 package (mounting area 5 mm × 5 mm), the new IC reduces the mounting area to about 66% of that of Toshiba’s current products. ACDS also reduces power loss and resistor variation errors, and contributes to low power consumption and highly precise constant current control.
