HiSAT-COT Control Extremely Small 600mA Step-Down DC/DC Converters

Published: Dec 17,2018

289 Read

Torex Semiconductor has launched the XC9281/XC9282 as a new series of HiSAT-COT control extremely small 600mA step-Down DC/DC converters.

More on This

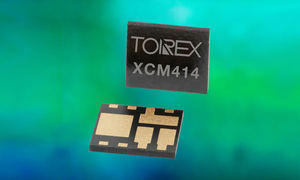

Ultra-Low ICs With an Integrated Schottky Diode Bridge and LDO Regulator XCM414 Series

Torex Semiconductor Ltd. has launched multichip-module power ICs that integrate four Schottky diodes and an LDO regulator...

Supports 4.35V and 4.40V charging Small and thin linear charging ICs, XC6808 Series

Torex Semiconductor has launched the “XC6808 Series” of charging ICs for single-cell lithium ion/polymer secondary b...

The XC9281 / XC9282 series are 600 mA synchronous rectification DC / DC converters adopting HiSAT-COT control. Due to increasing the oscillation frequency to high frequency, 0.47uH coil with a size of 1.0 x 0.5 mm can be used. A 0.6 x 0.3 mm ceramic capacitor can be used for the input capacitance (CIN) and the output capacitance (CL), realizing that the mounting area including peripheral components can be reduced to 6.6 mm2.

Due to increasing the oscillation frequency to a high frequency, the mounting area is reduced. Additionally, an efficiency equal to or higher than that of conventional products can realize by improving on-resistance and current consumption. Because of these features, XC9281 / XC9282 series are ideal for equipment requiring miniaturization and low profile mounting area, and battery-powered equipment such as mobile equipment.

Moreover, the high-speed transient response technology of the HiSAT-COT control makes it possible to minimize the fluctuation of the output voltage for a load transient condition. This feature is optimal for applications requiring a fast response and output voltage stability for an instantaneous load fluctuation like FPGA.
