The New S31 – The Versatile Machine for Large Tasks

Published: Apr 18,2019

409 Read

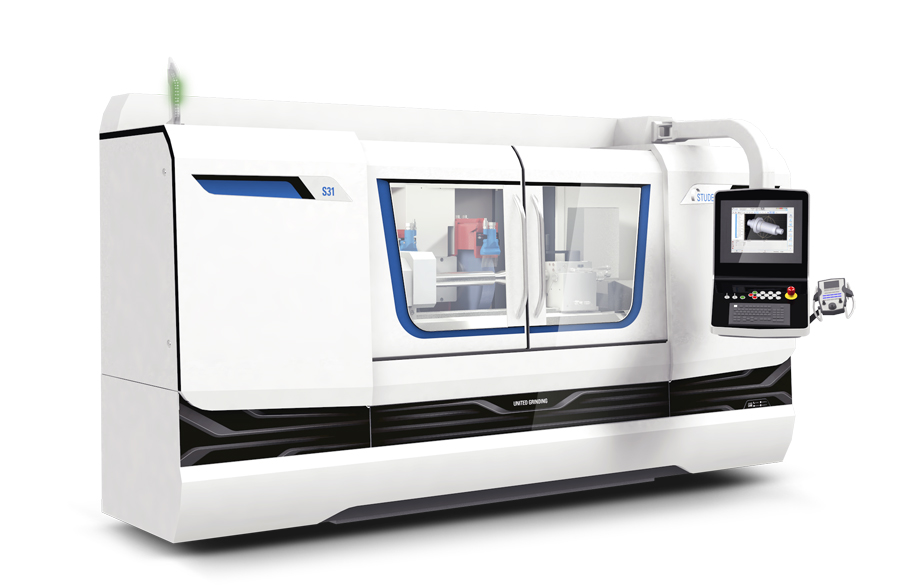

The new S31 performs complex and varied grinding tasks precisely and reliably. It can be used to produce small to medium-sized workpieces with a distance between centers of 400, 650, 1000 and 1600 mm and a center height of 175 mm in individual, small batch and high volume production. With a high-resolution B-axis of 0.00005° the swiveling wheelhead enables efficient external, internal and surface grinding in a single clamping.

More on This

Invitation to Compete for the "Fritz Studer Award 2020" Research prize

STUDER is awarding its research prize, the "Fritz Studer Award", for the sixth time. Students from European universities and technical colleges are invited to participate...

STUDER Introduces 360-degree Solution for Onternal Cylindrical Grinding

It was 1933 when the first internal cylindrical grinding machine, Type 01, left the premises of Fritz Studer AG. 85 year...

The foundation of the universal cylindrical grinding machine is the machine bed made from solid Granitan S103. This provides high dimensional stability thanks to its favorable thermal behavior, while the mineral casting largely equalizes short-term variations in temperature. STUDER has redesigned the machine base geometry and added an innovative base tempera-ture control. This ensures quick and stable production. The fixing of the dressing device on the double T-slot of the longitudinal slide drastically reduces the complexity of setup and change-over. A further highlight: The S31 features StuderGuide guideways with their damping compo-nent in the direction of movement.

The S31 is based on the STUDER T-slide concept. It now has an extended X-axis stroke of 370 mm. This enables a large number of wheelhead variants, which can be precisely tailored to the customer's requirements. Customers can choose between the turret wheelhead with continuously variable B-axis or B-axis with 1° Hirth coupling. The turret wheelhead can be equipped with several grinding wheels. Thanks to the software for grinding wheel alignment, STUDER Quick-Set, changeover times are reduced by up to 90 percent. The new S31 ena-bles grinding of different diameters and cones with just one grinding wheel and without time-consuming intermediate dressing. This is made possible by the direct drive on the B-axis with a positioning scatter of <1“.

Over a hundred years of grinding experience are invested in StuderWIN, which enables relia-ble programming and efficient operation. StuderTechnology also automatically calculates the optimal grinding parameters in a matter of seconds, based on just a little information. This means good quality and a stable process at the first attempt. The optional integrated modules such as StuderForm, StuderThread or StuderContourBasic, extend the functionality of the machine.

The S31 is equipped with a Fanuc 0i-TF and is optionally available with the Fanuc 31i-B for High Speed Machining (HSM). The PCU manual control unit enables setup of the machine close to the grinding process. Non-productive times can be reduced to a minimum with the electronic contact detection function. In addition, the standardized loader interface enables automation of the S31.
