Data Sheet - AMD G-Series APU 3.5 Embedded SBC with AMD A55E FCH, LVDS/VGA, Dual LANs and Audio

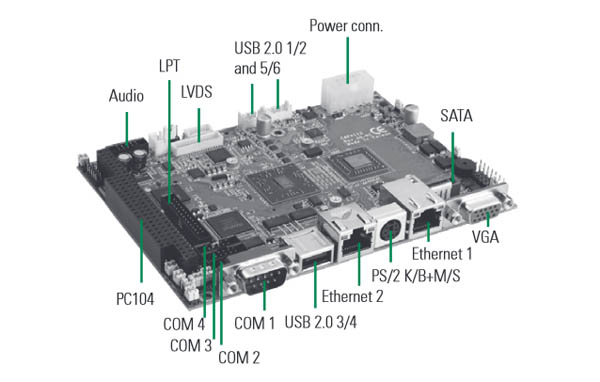

The CAPA112 is a fanless 3.5-inch embedded board with PC/104 for ISA bus expansion. The embedded board is powered by either an AMD Embedded G-Series APU dual core T40E at 1.0 GHz or single core T16R at 615 MHz, paired with the A55E FCH. One DDR3-1066 SO-DIMM on board implements up to 4GB of system memory. Integrated with Radeon HD 6250 graphics controller with DirectX 11 support, the super compact 3.5-inch embedded platform delivers unprecedented high definition visual experience. Moreover, it offers -40XC to +70XC (-40XF to +158XF) wide temperature range operation and only requires +12V DC power input into work. The CAPA112 is ideal for applications requiring a power-optimized, rich-graphics and easy integration platform, such as medical imaging, digital signage, kiosks/POI, thin clients and gaming machines.
- Published: Feb 17,2014
- Language: 英文
- Size: 0B
- Author:
Publisher: AXIOMTEK Co., Ltd.
