Data Sheet - 34AA04 4K I2C Serial EEPROM with Software Write-Protect

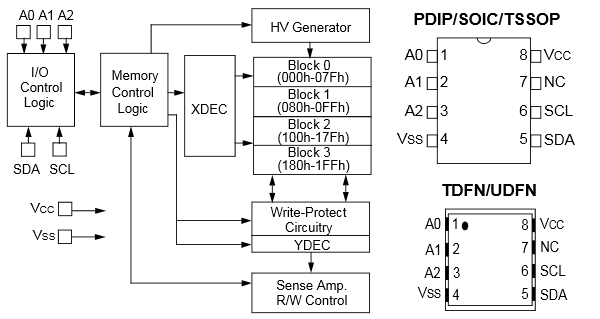

The Microchip Technology Inc. 34AA04 is a 4 Kbit Electrically Erasable PROM which utilizes the I2C serial interface and is capable of operation across a broad voltage range (1.7V to 3.6V). This device is JEDEC JC42.4 (EE1004-v) Serial Presence Detect (SPD) compliant and includes reversible software write protection for each of four independent 128 x 8-bit blocks. The device features a page write capability of up to 16 bytes of data. Address pins allow up to eight devices on the same bus.
- Published: Apr 23,2014
- Language: 英文
- Size: 0B
- Author:
Publisher: Microchip Technology Inc.
