However, in many situations, the EMC melt will not be fully cured when the mold cavity is completely filled. Thus, applying a post-mold cure process is a solution to accelerate the overall curing process. Baking the encapsulated units in a heated oven is one of the commonly used post-mold cure methods; after the units are fully cured, the temperature will be decreased for cooling.

During this process, the volume of EMC will shrink due to the effect of cross-linking. In addition, because of the fact that the coefficient of thermal expansion of each element in the encapsulated unit is different, a warpage issue will have a high probability to occur in this process as well. If the warpage problem is too severe, the internal microstructure of the encapsulated unit might be damaged, cracked, or malfunctioned.

To directly address to the above issues, Moldex3D’s post-mold cure analysis provides comprehensive simulation results that allow users to predict potential deformation problems. Moldex3D can provide an accurate prediction of the final warpage analysis by considering the variations in the way warpage changes with temperature and curing degree at the constant pressure during the entire post-mold curing process, meaning from the time the unit is put into the oven to when it is cooled to room temperature.

Moldex3D’s post-mold cure analysis will be demonstrated using the example of a double-layer plate model. The material used in this case is EMC-Cu. The model used in this case is referenced from Wang, Zhi-Guo, “Modeling the Viscoelastic Properties of Epoxy Molding Compound during Post Mold Cure in IC Packaging,” National Cheng Kung University: Master Degree Dissertation (2006).

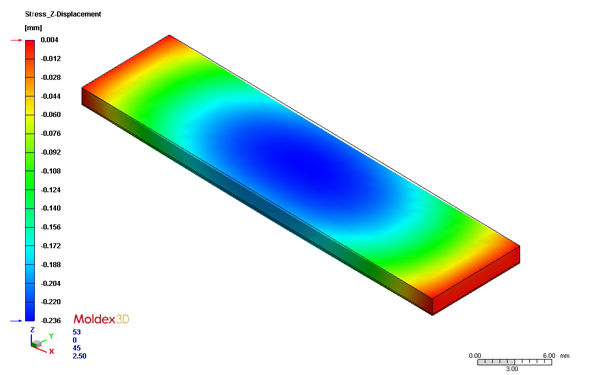

In this case, an experiment was conducted after the simulation analysis. The result from the experiment showed that the final part warpage in the Z-direction (Z-displacement) is 0.32 mm at the end of post-mold cure process (approximately at the 23000th second). In the simulation analysis result, the final Z-displacement is 0.354 mm, which is numerically close to the experimental result.

The major influential factor in Moldex3D’s simulation analysis of the part warpage before the part is placed in the oven, and is the volumetric shrinkage caused by raising the curing degree; the Z-displacement from the pre-oven stage is 0.326 mm. After the unit is placed in the oven, the major influential factor of the part warpage becomes the stress relaxation due to viscoelasticity (the encapsulated unit has fully cured at this time).

At this stage, the volumetric shrinkage is caused by the release of internal thermal stress solely; the Z-displacement from the oven stage is 0.028mm. Thus, the final simulated Z-displacement result will be the sum of these two results as 0.354 mm.

In summary, the goal of this case is to investigate the changes in product warpage results when the polymers inside the encapsulated unit are completely cross-linked and when the internal stress is released in the post-mold cure process.

Both the simulation and experimental results show that a majority of the warpage amount is a result of the process of cross-linking. Based on this insight, we can also conclude that Moldex3D provides a reliable, in-depth understanding of visualizing warpage behavior in the post-mold cure stage.

Users can apply Moldex3D’s accurate post-mold cure analysis in the design and manufacture for IC packaging process in order to make better arrangements to avoid excessive product warpage, which ultimately helps accelerate faster time-to-market and lower production costs.
