Imec’s new radar design generates fast modulated waves, with a frequency increase of 12 percent in just 51.2 microseconds. A high modulation bandwidth (7.2 GHz) determines the sensor’s ultra-fine resolution, which makes it suitable for 3D sensing of finger motions, hand swiping and gestures. Experiments have demonstrated the sensor’s ability for multi-target detection, heartbeat detection at 5 meter and accurate tracking of a pedestrian’s position and velocity. The radar operates in the frequency band around 60 GHz, a license-free ISM band that can be used for new IoT applications for industrial and medical purposes.

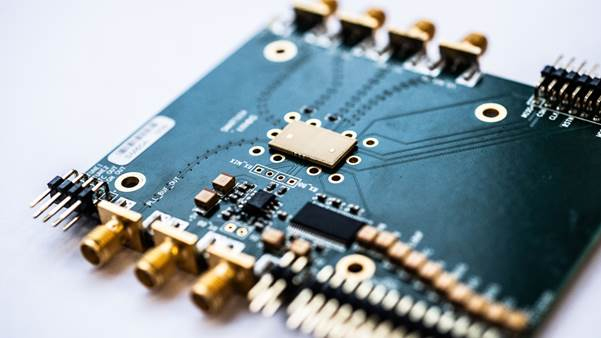

The system only consumes 62mW which is significantly lower compared to state-of-the-art radars in this frequency range. A quick start-up time (1µs) supports aggressive duty-cycling for further power reduction. The 4.15 mm² transceiver chip is integrated in 28nm bulk CMOS technology, ensuring a low-cost solution at high volume production. A reference module design is available for the single-channel radar, including the antenna and achieving good spillover performance.

“Being extremely compact and energy efficient, the 60 GHz radar system can be integrated in smart health devices such as smartphones, health monitoring systems or wearables”, says Barend van Liempd, program manager radar at imec. “The radar enables such devices to sense their surroundings, which will shape the way in which we control and use these devices. For instance, a phone with integrated radar on your bedside table can monitor sleep quality by contactless tracking of breathing rate and heart rate variability. The radar is well suited for classification of other physical activities, which will open a new range of smart applications in the context of personalized health, baby monitoring, sports, elderly care, patient monitoring, nurse efficiency or worker safety”.

“Our prototype shows that radar technology is becoming ready for the next big step: the use in battery-powered devices. Now, we are looking for companies that want to exploit these ideas to enter the market by realizing new radar solutions”, says Kathleen Philips, Director IoT at imec.
