LED-Compatible Materials for Light Engines

Published: Feb 25,2016

869 Read

DELO Industrial Adhesives has tested and released 14 adhesives for use in LED lighting. Ten products have received approval for direct LED contact, and an additional four were certified for indirect contact. They allow for durable, high-intensity LED modules and light engines.

More on This

DELO Introduces Compact LED Curing Lamp DELOLUX 503

DELO has developed a particularly space-saving UV lamp for adhesive curing. The powerful DELOLUX 503 is designed for ind...

DELO Announces Its New Generation of 365 nm Curing Lamps

DELO Industrial Adhesives has extended its device portfolio by another two curing lamps. A new generation of area lamps with a wavelength of 365 nm is now available...

The fourteen adhesives demonstrated their chemical tolerance in tests standard for the LED industry. The modules were supplied with 700 mA for six weeks, which heated them to up to 70 °C.

During the subsequent intensity test, there was no decrease in brightness for the products meant for direct LED contact, and for those with indirect contact only a very slight decrease. The low-outgassing and yellowing-resistant adhesives ensure the long-term high optical quality of the LED module.

DELO predominantly uses light-curing epoxy resins for its LED-compatible products. Compared with silicones, they are more stable and provide a better seal. Under some circumstances, humidity can enter the LED and electronics when silicones are used, which shortens their service life. Light curing of epoxy resins and acrylates is also faster, making them more efficient to produce.

Their temperature stability and flexibility means that they can withstand extreme heat, cold, and even vibrations. Their universal adhesion also allows reliable and practically invisible connections of even the most complex geometries and material combinations.

Design and quality – two aspects that can be affected by the adhesive used – can make LED lamps stand out from the competition on the lighting market. Adhesive is typically used to fix lenses or reflectors, and can also seal LED lamps into glass plates or housings.

When module and lamp manufacturers employ LED-compatible adhesives rather than the frequently used screw or plug connections, they achieve a better seal, which lowers the probability of a failure or decline in intensity.

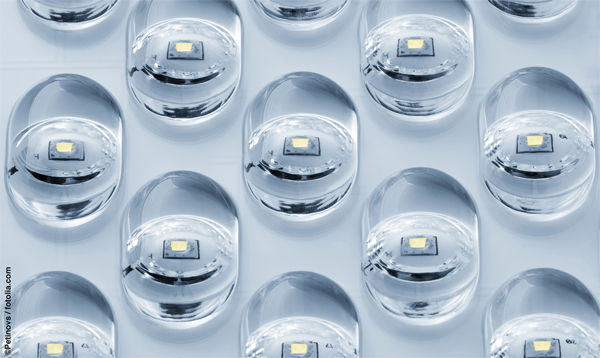

Precisely attaching a lens is an important step on the path towards a high-performance light.
