Reflective Optical Sensor Saves Space and Lowers Costs

Published: Dec 08,2016

745 Read

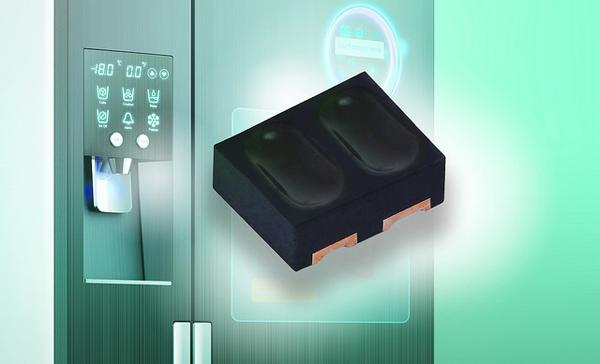

The Optoelectronics group of Vishay Intertechnology introduced a new reflective optical sensor for smart home, industrial, and office applications. Saving space compared to previous-generation solutions, the Vishay Semiconductors VCNT2020 combines an infrared emitter, silicon phototransistor detector, and daylight blocking filter in a miniature 2.5 mm by 2.0 mm by 0.8 mm surface-mount package.

More on This

New Vishay Intertechnology TMBS Rectifiers in MicroSMP Package Save Significant Space

Vishay Intertechnology expanded its offering of surface-mount TMBS Trench MOS Barrier Schottky rectifiers with 10 new 1 ...

Vishay Intertechnology Sensitivity Proximity and Ambient Light Sensor Offers Increased Proximity Det

The Optoelectronics group of Vishay Intertechnology announced a new sensitivity proximity and ambient light sensor that combines long distance proximity detection up to 1...

The device released today features a compact construction in which the emitting light source and detector are arranged in the same plane, with excellent internal crosstalk suppression. The VCNT2020's analog output signal is triggered by the detection of reflected infrared light from a nearby object.

The sensor's built-in daylight blocking filter greatly suppresses disturbing ambient light, thereby increasing the signal-to-noise ratio. The device's compact QFN package features wettable flanks to enable optical inspection of the solder joints. This lowers costs by eliminating the need for expensive x-ray inspections.

The VCNT2020 will be used for optical switching in office equipment and home appliances; optical encoding in disc and tape drives for DVD and / or camera applications; and paper presence detection in printers and copy machines.

The sensor offers a detection range of 0.2 mm to 2.5 mm, an emitter wavelength of 940 nm, and a typical output current of 1.6 mA, which represents a typical current transfer ratio (CTR) of 8 % under test conditions and is up to four times higher than that of similar devices available on the market. The device features a Moisture Sensitivity Level (MSL) of 4 for reflow soldering according to J-STD-020; it is RoHS-compliant, halogen-free, and Vishay Green.
