Vishay Intertechnology Sensitivity Proximity and Ambient Light Sensor Offers Increased Proximity Det

Published: Jul 11,2017

722 Read

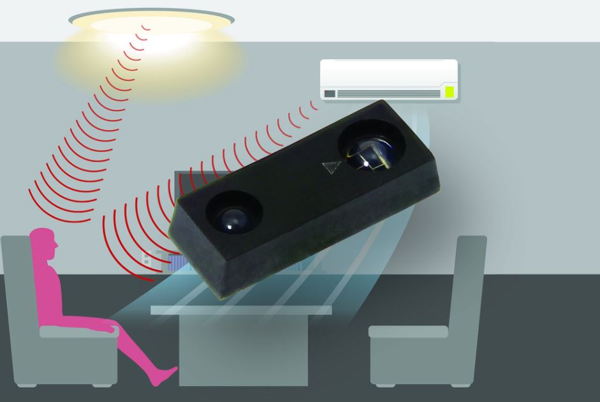

Vishay Intertechnology announced a new sensitivity proximity and ambient light sensor.(Source: Vishay)

The Optoelectronics group of Vishay Intertechnology announced a new sensitivity proximity and ambient light sensor that combines long distance proximity detection up to 1.5 m with Filtron technology in a compact 8 mm by 3 mm by 1.8 mm surface-mount package.

More on This

Vishay Intertechnology Launches Industry-First High Frequency IHLP Inductor Series

Vishay Intertechnology introduced the first extended-frequency inductor in the low profile, high current IHLP family. Th...

New Vishay Intertechnology TMBS Rectifiers in MicroSMP Package Save Significant Space

Vishay Intertechnology expanded its offering of surface-mount TMBS Trench MOS Barrier Schottky rectifiers with 10 new 1 ...

The Vishay Semiconductors VCNL4200 three in one sensor features a high power IR emitter, photo detectors for proximity and ambient light, a signal processing IC, and a 12-bit / 16-bit ADC, while providing an interrupt function and supporting I²C bus communication interface for smart home, industrial, and office applications.

Offering a 50 % increase in proximity detection over previous-generation devices, the VCNL4200 provides presence detection for display activation in printers, copiers, and home appliances; collision avoidance in toys and robots; proximity sensing and lighting control in offices, corridors, and public buildings; lavatory appliance activation; and parking space availability in lots and garages.

Containing the circuitry needed for these applications in one device, the sensor eliminates the need for additional light barriers and optical alignment of the IR emitter and photo diode. The device's small outline saves space and gives design engineers greater flexibility in where and how they locate the sensor.

The ambient light and proximity sensors of the VCNL4200 operate in a parallel structure, and each offers a programmable interrupt function with high and low thresholds that allow the sensor to wake up an application from a low power mode, reducing the overall power consumption of an application.

The device's Filtron technology enables ambient light spectral sensitivity close to that of the human eye while offering excellent background light cancellation capabilities.

The VCNL4200's built-in ambient light photo diode offers detection from 0.003 lx to 1.57 klx, allowing the device to operate in applications with dark or high transparency lens designs.

The 16-bit sensor offers fluorescent light flicker immunity and excellent temperature compensation from -40 °C to +85 °C. The VCNL4200's 12-bit proximity sensor uses intelligent cancellation to eliminate cross-talk, while a smart persistence scheme ensures accurate sensing and faster response time. The emitter wavelength peaks at 940 nm and has no visible "red-tail."

The device offers a supply voltage range of 2.5 V to 3.6 V and I²C bus voltage range from 1.8 V to 3.6 V. Offered in a lead (Pb)-free 10-pin QFN package, the sensor is RoHS-compliant, halogen-free, and Vishay Green.
