Tokyo Tech, Fujitsu Achieve World's Fastest Wireless Transmission of 56 Gbps

Published: Feb 01,2016

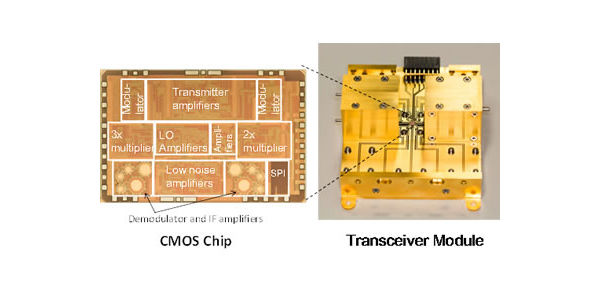

The newly developed CMOS wireless transceiver chip and the wireless module that includes it are comprised of two key technologies.

Tokyo Institute of Technology and Fujitsu Laboratories Ltd. today announced that they have developed a CMOS wireless transceiver chip that can process signals at high speeds with little loss across a broad range of frequencies, from 72 to 100 gigahertz (GHz). With these developments, they succeeded in achieving wireless transmission speeds of 56 Gigabits per second (Gbps), the world's fastest.
