Compact, High Power Synchronous Boost DC/DC Converter

Published: Mar 10,2016

6327 Read

ROHM has recently announced the availability of a compact, high-efficiency, high power synchronous boost DC/DC converter IC optimized for single-cell battery applications.

More on This

New High Voltage Zener Diode Lineup from ROHM

ROHM has announced the development of high voltage Zener diodes optimized for protection and constant current applications in a variety of electronic circuits...

ROHM Reference Boards for High Voltage Fan Motor Drivers

ROHM has recently announced the availability of reference boards designed to evaluate its high voltage fan motor drivers...

Many of today's portable devices (i.e. smartphones and tablets) are driven by single-cell li-ion batteries that deliver an output of approximately 4.2V at full charge. However, when connecting to interfaces requiring 5V output, such as USB, HDMI, and audio amps for speakers, a DC/DC converter is needed to boost the voltage. At the same time, longer battery life along with greater efficiency are demanded in a smaller form factor.

In response, the BD1865GWL features a lower operating limit of 2.5V, prolonging battery life in devices by extending operation down from the conventional 2.7V. In addition, two operating modes are built in, PWM/PFM mode and ROHM's original mixing PWM mode.

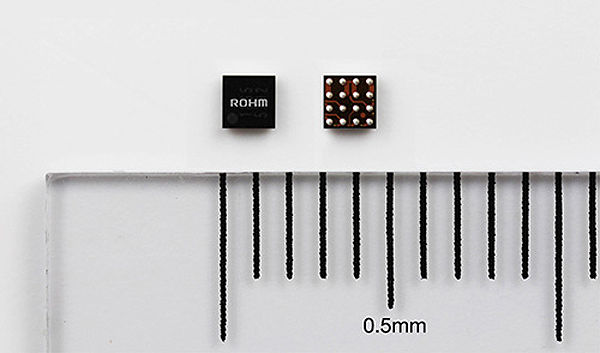

The former ensures up to 90% efficiency across all load regions, while the latter prevents unwanted switching noise in audio applications. The BD1865GWL is also capable of delivering output currents up to 2A in a compact 1.6mm x 1.6mm package, contributing to greater end-product miniaturization.
